12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts

  • 1
  • 2

Brand Name : AOXUANZG

Model Number : J23-12T

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $1500 unite

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Pressure : 120KN

Die Set Height : 130mm

Work Table Size : 220*370mm

Main Power : 1500w

Size : 600*530*1500mm

Weight : 130kg

Contact Now

Small Type High Speed 12T Mechanical Power Press Punching Machines For Mini Parts

C-frame Punching Machine Main Features

1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
2. Steel-welded frame, high rigidity and less deformation Compact.
3. Thick plates and large columns provide you with the stable platform you need for your demanding application.
4. High accuracy, high efficiency, simple and convenient operation, good performance.
5. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical.
6. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.

Technical Parameters:
Model J23-6.3T J23-12T J23-16T J23-25T J23-40T J23-63T J23-80T J23-100T J23-125T
Nominal Pressure(KN) 63 120 160 250 400 630 800 1000 1250
Nominal Pressure Stroke(mm) 1.5 2 2 2.5 4 4 5 5 5
Slide stroke(mm) 40 50 60 70 100 100 120 120 140
Stroke frequency (times/min) 150 140 100 70 55 56 45 50 40
Die Set Height (mm) 120 130 170 200 240 275 300 320 340
Die Height Adjustment 30 40 40 40 56 63 70 80 90
Worktable Size ( front-back) (mm) 210 220 290 350 400 450 480 580 700
Worktable Size ( Left-Right)(mm) 350 370 460 560 680 680 780 910 1100
Max Tilt Angle 20 20 30 15 25 25 25 20 20
Die Handle Hole Size (mm) 25 30 35 40 50 50 60 60 60
Thickness of the Worktable 30 35 45 50 70 80 90 110 120
Worktable Hole Diameter 70 90 120 130 135 140 160 160 170
Power(KW) 0.75 1.5 1.5 2.2 3 4 5.5 7.5 11
Column Spacing (mm) 140 170 190 240 250 280 320 390 400
Dimensions (mm) 400*500*1300 600*530*1500 760*650*1600 900*700*2000 1400*1000*2300 1700*1150*2500 2000*1300*2650 1950*1400*2850 2300*1500*3000
Throat Depth (mm) 120 130 170 190 250 260 290 330 330

Details:

Our crankshafts are all high-quality crankshafts made of 42CRMo steel after high temperature forging. the surface is quite smooth. so that make sure the lower friction resistance , and the lower noise. It is lubricated. The press work more smooth.

12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts

Safety light on our machine which is Convenient to use for lighting at night working.
12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts
Use Chinese famous brand electrics to ensure the machine service life.
12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts
Use Chinese famous brand motor to ensure the operation reliability.
12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts
Machine regulating screw
12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts

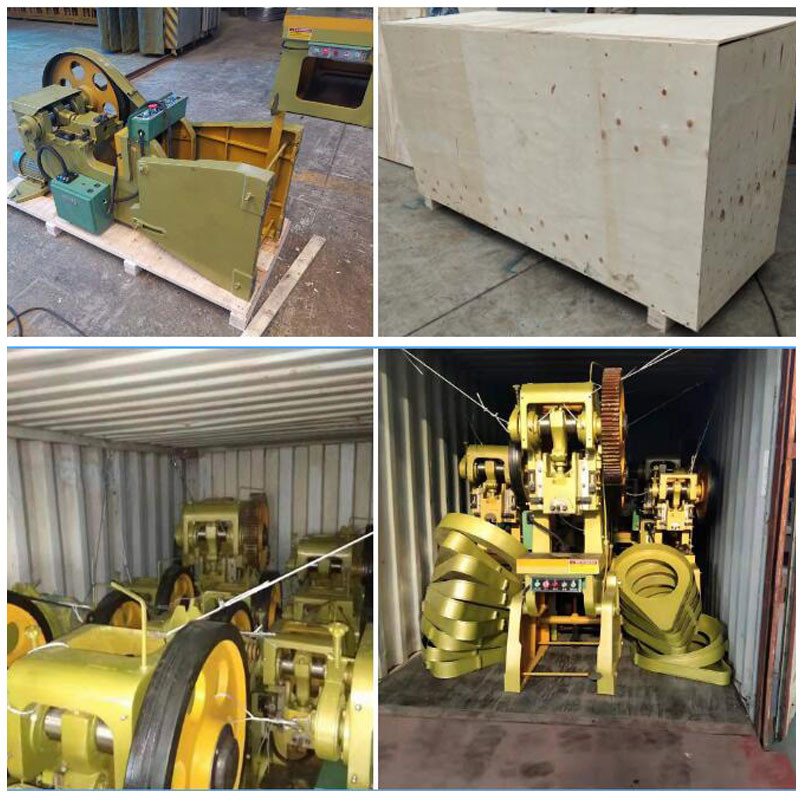

Packing Detail:
☂ Each Press machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :
☀ Shipped in 15 days after payment.

12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts
12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts
For more information, please contact me (^o^)/~
12T Small Power Press Machine , 130mm CNC Hydraulic Plate Punching Machine For Mini Parts
